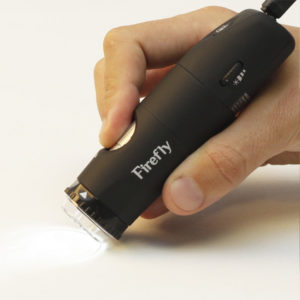

GT820 Polarizing Digital Microscope
-
- TRUE 2.0 Megapixel resolution
- Twelve levels of polarization
- Magnifies up to 180x (optically) and 540x (digitally)
- Easily captures microscopic pictures and videos
- Observes and records in real time (30 FPS)
- Built-in snapshot button
- Multi-layered glass lenses
- Rugged industrialized construction
For Technical Specifications Click Here
Uses
- Quality Assurance
- Engineering Design Work
- Research
- BGA Inspection
What’s Included
- Polarizing Digital Microscope
- FireflyPro Software CD
- USB Cable
- Velvet Carrying Case

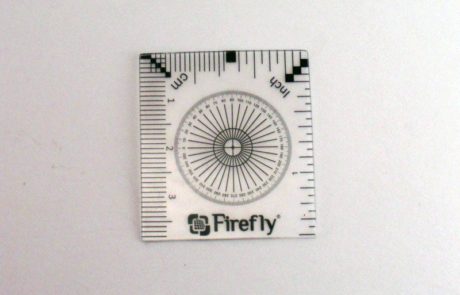

- Calibration Tool
- User Manual on CD
| Technical Details | |
|---|---|
| Sensor Resolution | True 2.0 Megapixels (1600 x 1200) |
| Magnification | Native Optical: 10x – 180x Digital: 10x – 540x |
| Lens Assembly | Dual Lenses 3-Layer Glass, 650nm cutoff |
| Video | Format: YUY2 Frame rate: 30 FPS |
| Video/Image Properties | Color: Hue, Saturation Exposure: Brightness, Contrast Image: Sharpness, Gamma |
| Video, Image Files | BMP, JPG, AVI |
| Lighting | 8 Ultra-Bright LEDs Fully adjustable brightness |
| Dimensions | 13cm x 3.6cm x 4cm |
| Interface | USB 2.0 |
| Software | Scalable Window, Zoom, Freeze, Resolution, Rotate, Flip Region of Interest (ROI) Automatic/Manual white balance |
| Operating Systems | Windows 11, 10, 7, and Mac OS 10.4 or higher |
| Warranty | 1 Year Limited Hardware Warranty |
Firefly devices are intended to be used with the included software, but may also be integrated into 3rd party platforms. If you would like to use a 3rd party software package please contact us and we can provide integration guidelines.
For more information contact sale@healthtntour.com
